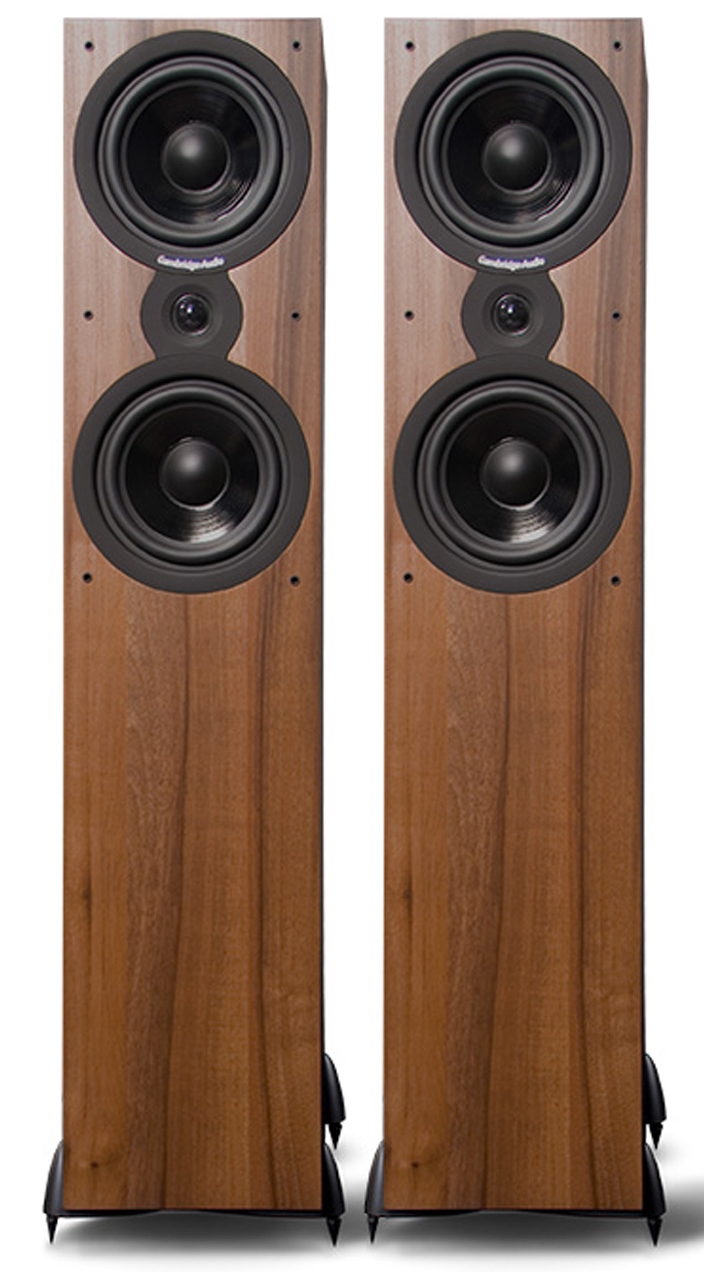

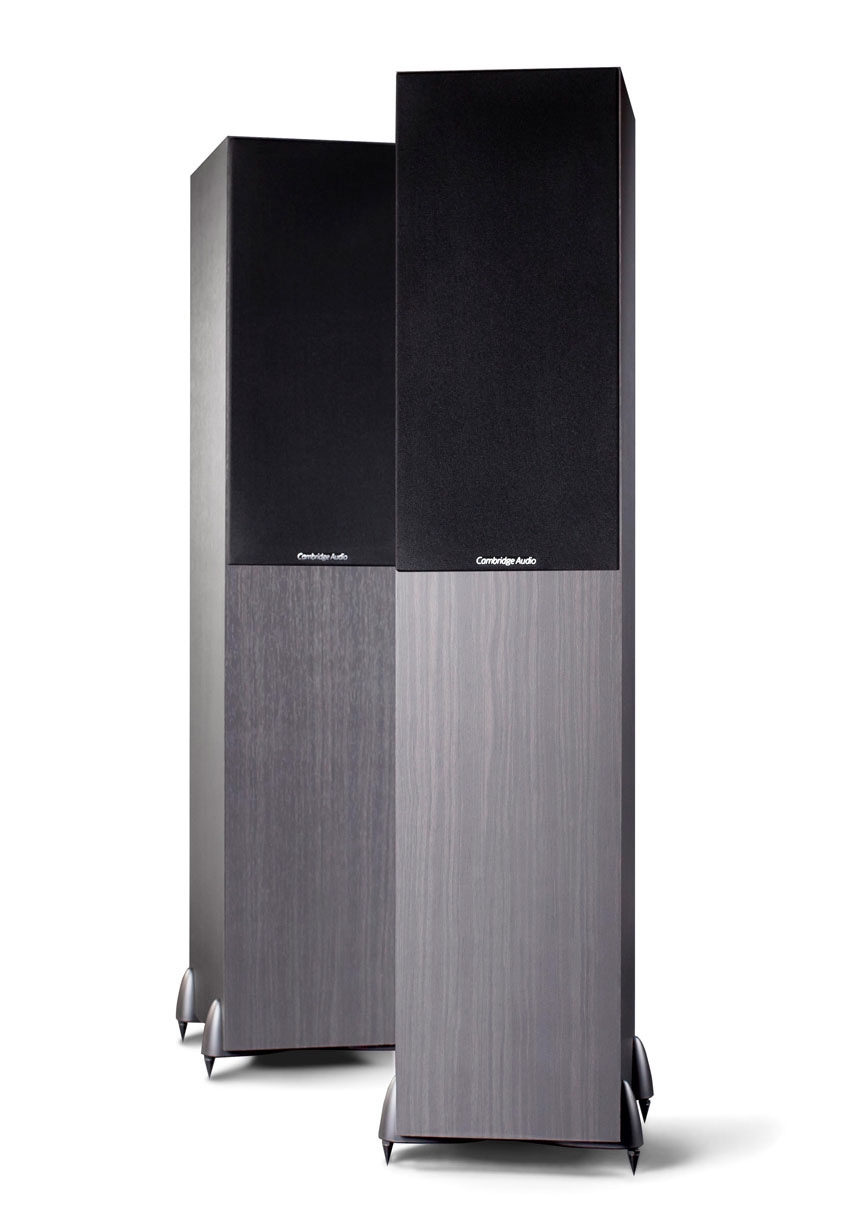

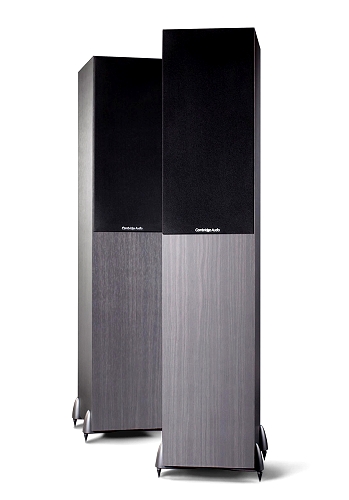

| SX-80
floorstanding speakers
Sensitivity
87dB
Frequency Response
40Hz – 20kHz
Impedance
8 Ohms
Drive units
2 x 165mm (6.5’’) woofers 1 x 25mm (1’’) silk dometweeter
Ported
1 front
Colour
Black or walnut
Dimensions (WxHxD)
240 x 980 x 338mm
Weight
16.9kg
|
|
|
| |
|
|
|
|
|
|
| |
|
|

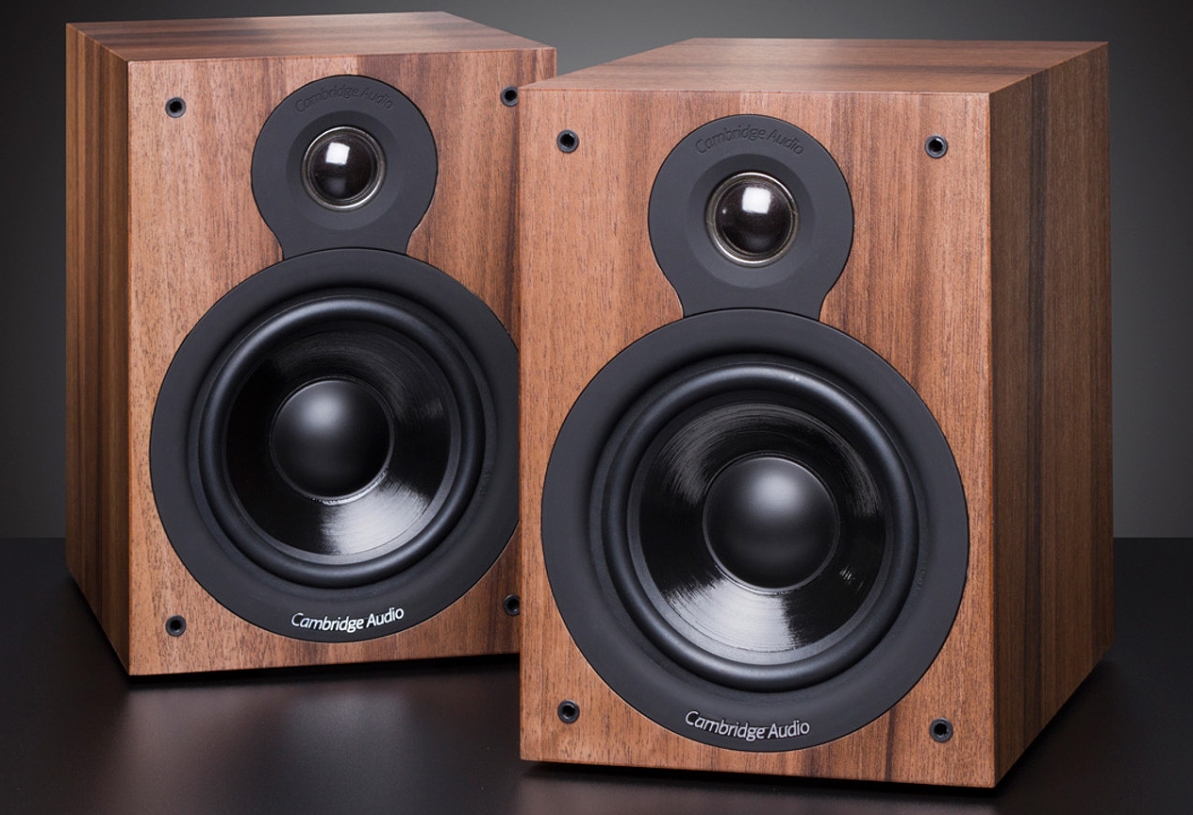

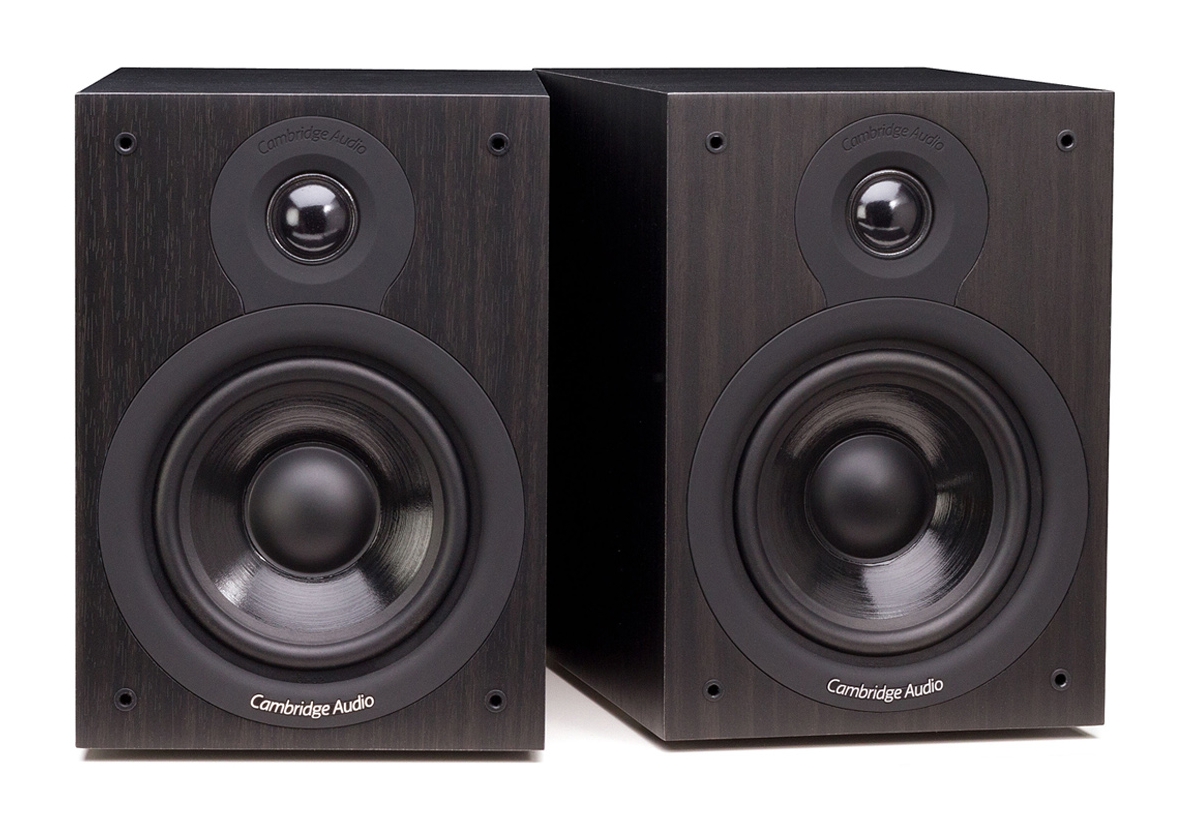

| SX-50
Bookshelf speakers
Sensitivity
87dB
Frequency response
50Hz-22kHz
Impedance
8 Ohms compatible
Recommended amplifier power
10-100 watts
Drivers
5.25” (135mm) treated paper cone woofer 1” (25mm) Silk dome tweeter
Crossover
2 way
Ported
1 rear
Magnetic shielding
No
Colour
Black or walnut
Dimensions (HxWxD)
225 x 161 x 240mm
Weight
3.0kg
|
|
|
| |
|
|
|
|
|
|
| |
|
|

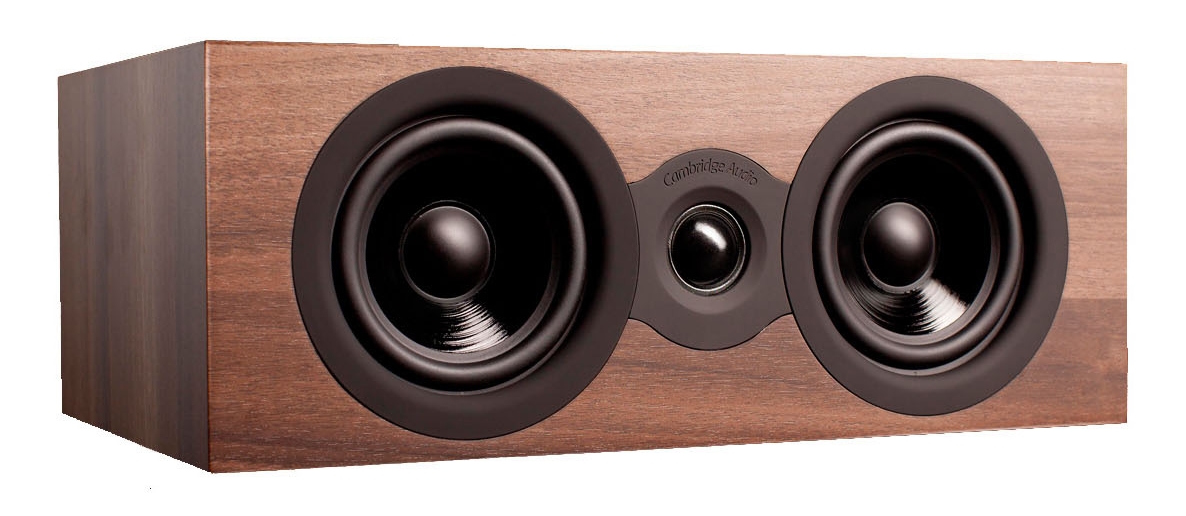

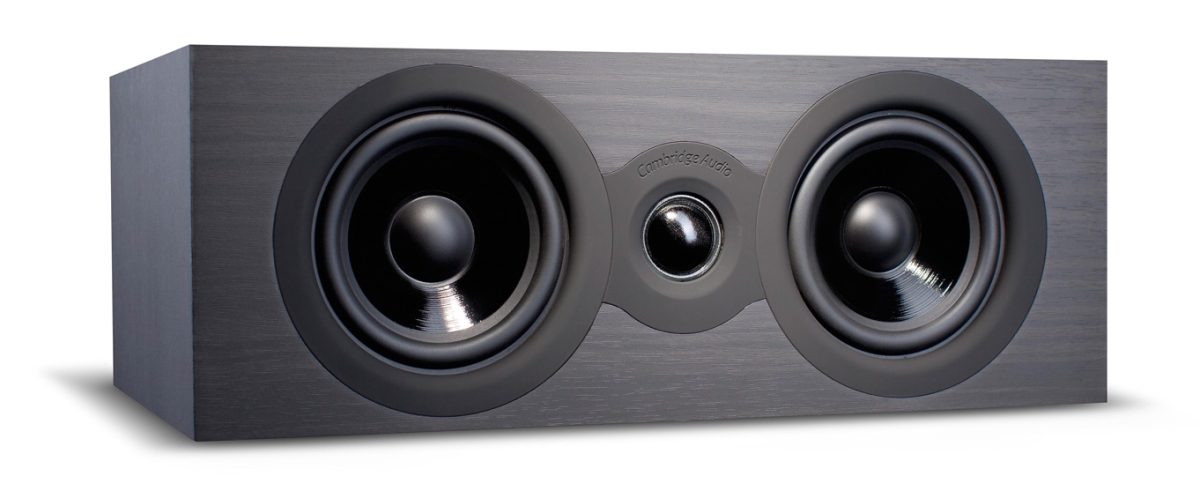

| SX-70
Center speakers
Sensitivity
85dB
Frequency response
65Hz – 20kHz
Impedance
8Ohm
Drivers
2 x 100mm (4’’) woofers 1 x 25mm (1’’) silk dome tweeter
Recommended amplifier power
10 – 100 Watts
Dimensions (H x W x D)
138 x 360 x 246mm (5.4 x 14.2 x 9.7” )
Weight
4.0kg (8.8lbs)
|
|
|
| |
|
|
|
|
|
|
|
| |
|
|

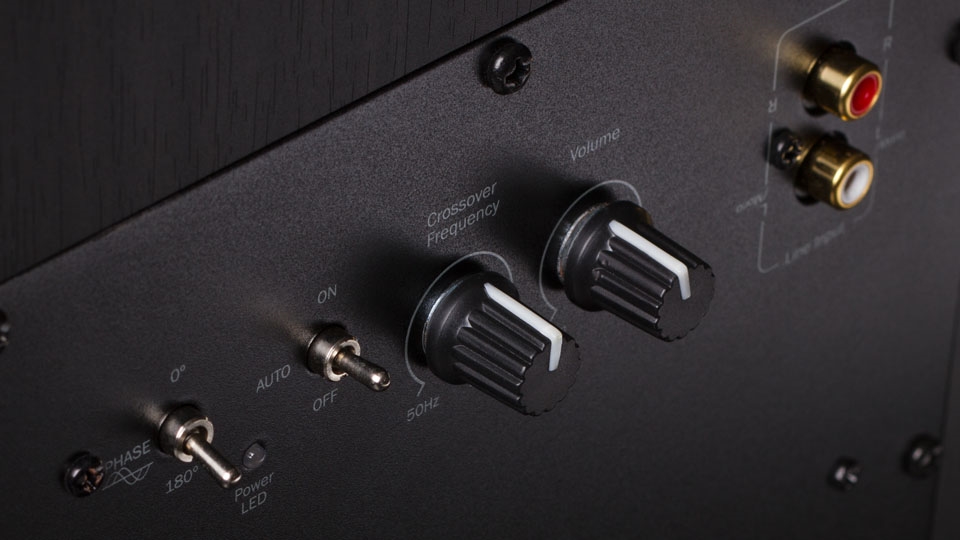

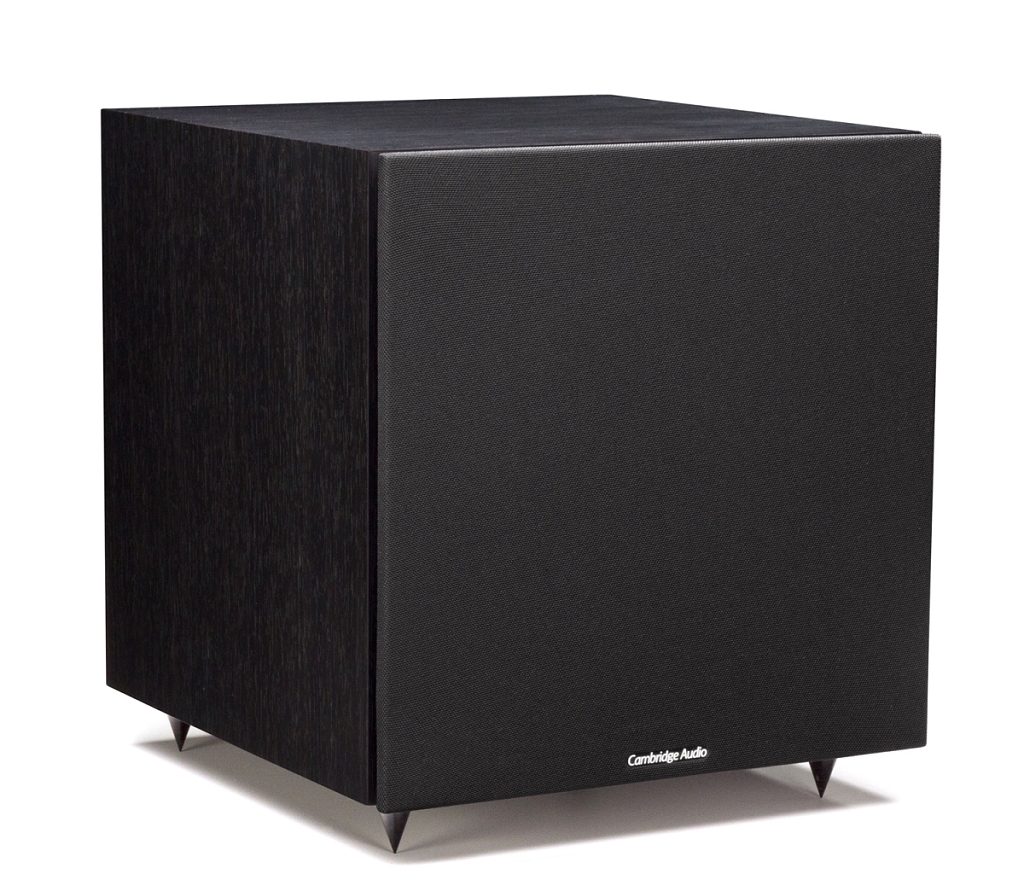

| SX-120
subwoofer |
| Rated
output power: |
70W |
| Frequency
response |
30Hz
- 150Hz |
| Drivers: |
1 x 8’’ (203mm) long throw woofer |
| Crossover: |
50 – 150Hz continuous/active |
| Colour: |
Black |
| Dimensions
(W x H x D): |
300 x 300 x 310mm |
| Weight: |
7.7kg |
|
|
| |
|
|
|
|
|
