▲點圖放大
|

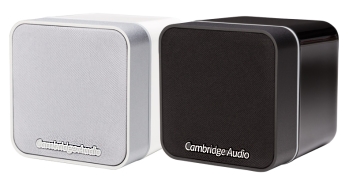

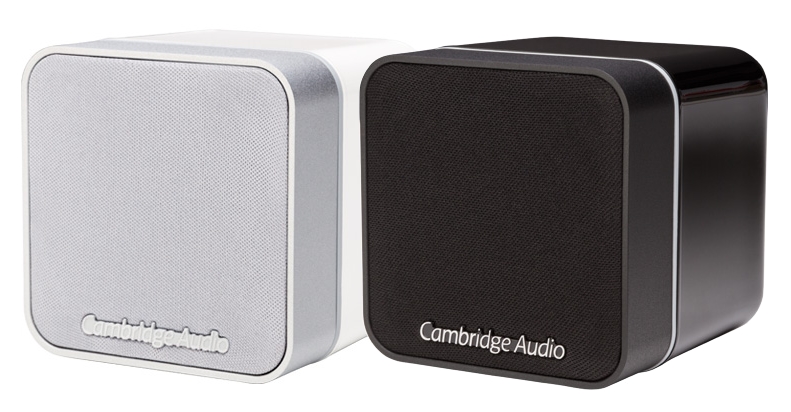

Min 12 satellite speaker
Sensitivity (SPL)
86dB (2.83 Vrms input)
Frequency response
150Hz-20kHz
Impedance
8 Ohms compatible
Recommended Amp Power
25 - 200W
Dimensions (H x W x D)
78 x 78 x 85mm (3.1 x 3.1 x 3.3”)
Weight
0.43kg (0.95lbs)
Finishes
High gloss black High gloss white
|
|
|
|
|
|
|
|
|
|
|
|
▲點圖放大
|

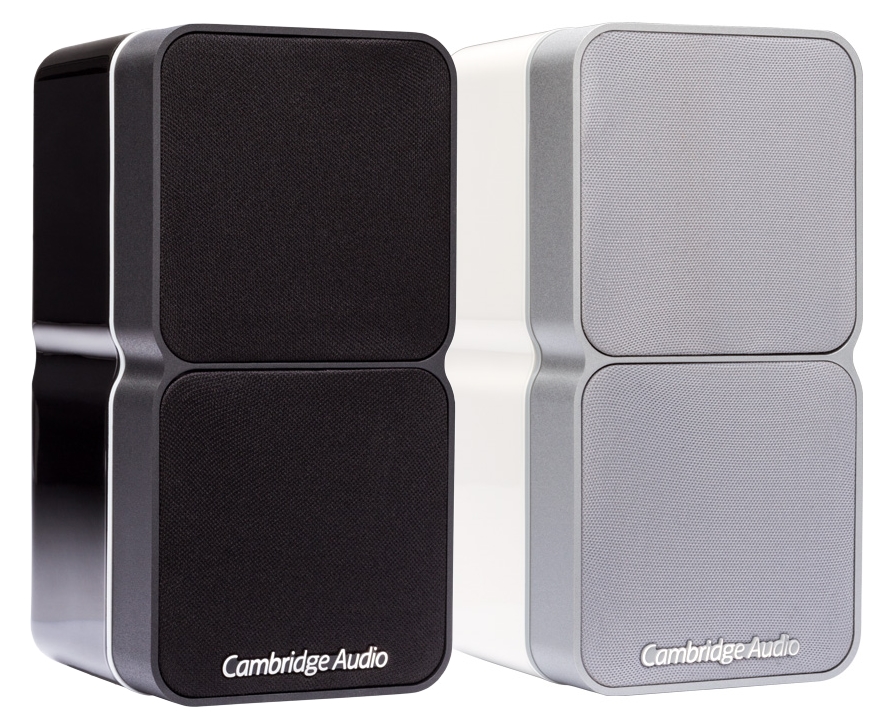

Min 22 satellite speaker
Sensitivity (SPL)
88dB (2.83 Vrms input)
Frequency response
120Hz-20kHz
Impedance
8 Ohms compatible
Recommended Amp Power
25 - 200W
Dimensions (H x W x D)
154 x 78 x 85mm
Weight
0.75kg
Finishes
High gloss black High gloss white
|
|
|
|
|
|
|
|
|
|
|
|
▲點圖放大
|

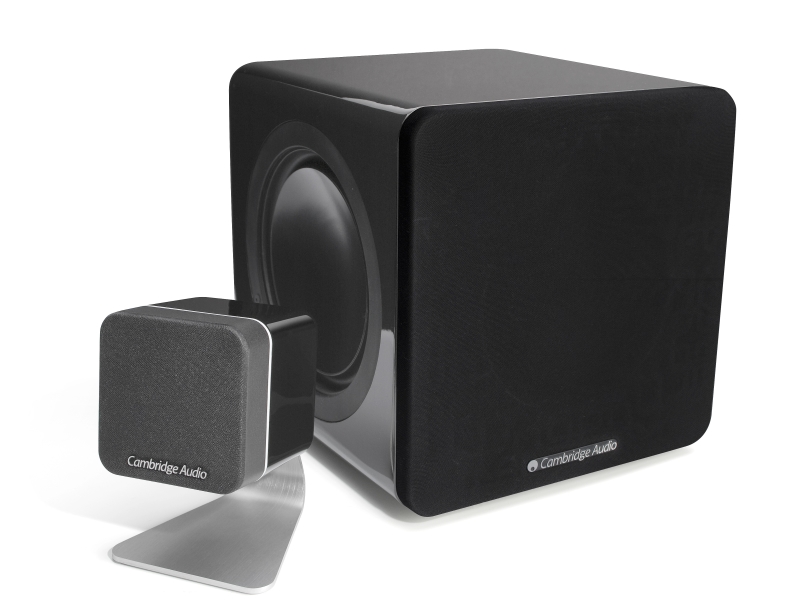

| X201
subwoofer |
|
| Power
Output: |
200W |
| Frequency
Response: |
39Hz
(-6dB) – 200Hz |
| Crossover: |
Active
– variable 50Hz-200Hz |
| Drive
units: |
1
x 6.5" subwoofer
2 x 6.5" passive radiator |
| Dimensions
(H x W x D): |
219
x 210 x 222mm |
| Weight |
5.0Kg |
| Finishes: |
High
gloss black
High gloss white |
|
|
|
|
|
|
|
| |
|
|
|
|
|
▲點圖放大
|

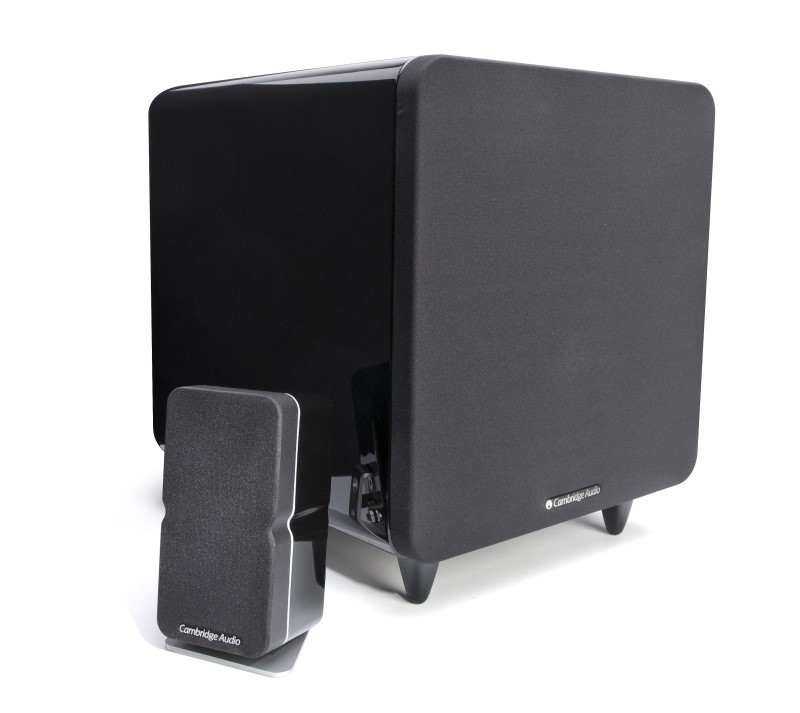

| X300
subwoofer |
|
| Power
Output: |
300W |
| Frequency
Response: |
33Hz
(-6dB) – 200Hz |
| Crossover: |
Active
– variable 50Hz-200Hz |
| Drive
units: |
1
x 8" subwoofer
1 x 8" passive radiator |
| Dimensions
(H x W x D): |
311
x 266 x 278mm |
| Weight: |
7.5Kg |
| Finishes: |
High
gloss black
High gloss white |
|
|
|
|
|
|
|
|
|
|
|

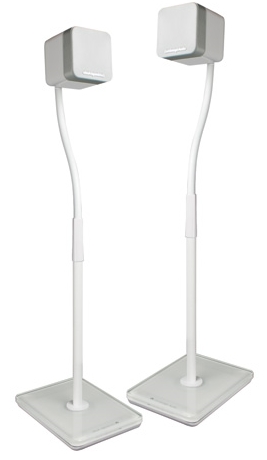

| 600P
adjustable floorstand |
| Finishes: |
High
gloss black
High gloss white |
| Dimensions
(H x W x D): |
720mm
(28.3'' ) min height
1112mm (43.8'') max height
152mm (5.9'') width
200mm (7.8'') depth |
| Weight: |
2.9kg
(6.4lbs) |
|
|
|
|
|
| |
