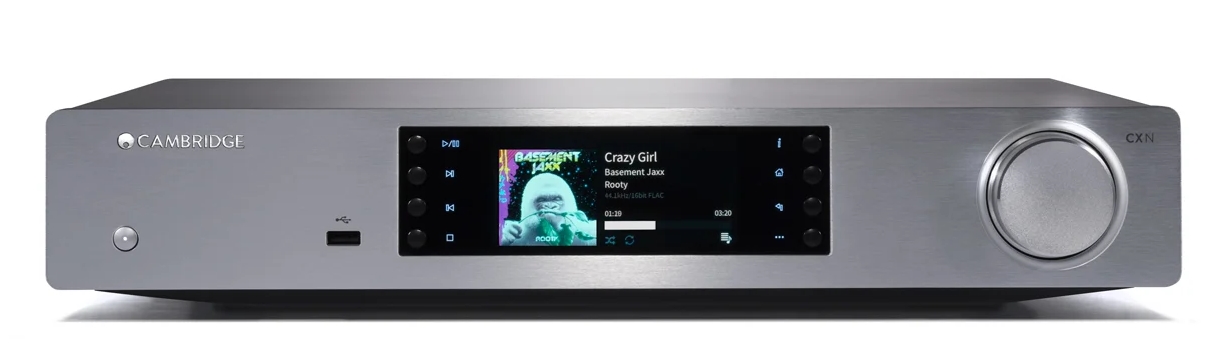

CXN V2

NETWORK AUDIO STREAMER

• DAC
  Dual Wolfson WM8740 24-bit DACs

  ROON READY
  Yes (Requires a Roon subscription)

  DIGITAL FILTER
  2nd Generation ATF2 up-sampling to 24-bit/384khz

  ANALOGUE FILTER
  2-Pole Dual Differential Bessel

  USB AUDIO INPUT
  USB Type B conforms to USB Audio profile 1.0 or 2.0 (user selectable)

  DIGITAL AUDIO INPUTS
  S/PDIF Coaxial and TOSLINK Optical)

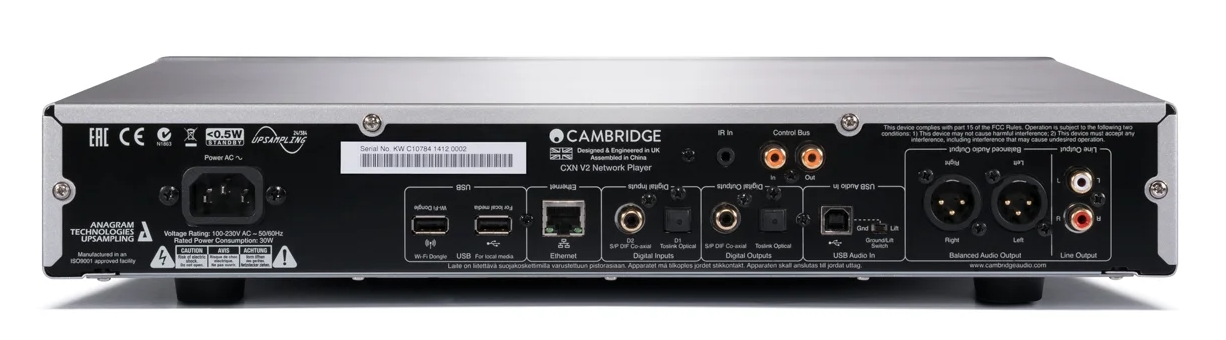

  ANALOGUE AUDIO OUTPUTS
  Balanced XLR and unbalanced RCA analogue

  DIGITAL AUDIO OUTPUTS
  S/PDIF Coaxial and TOSLINK Optical

  COMPATIBILITY
  UPnP, Local USB media, USB audio 1.0 and 2.0, S/PDIF Toslink and Coaxial, Airplay 2, Chromecast built-in , Internet radio, Spotify Connect, TIDAL, Qobuz, Bluetooth aptX via BT100 Bluetooth receiver (not supplied)

  AUDIO FORMATS
  ALAC, WAV, FLAC, AIFF, DSD (x64), WMA, MP3, AAC, HE AAC, AAC+, OGG Vorbis

  ETHERNET
  IEEE 802.3, 10 Base-T or 100 Base-T

  WI-FI
  IEEE 802.11 b/g or n (2.4GHz)

  MAX POWER CONSUMPTION
  30W

  STANDBY POWER CONSUMPTION
  <0.5W

  REMOTE CONTROL
  Yes

  DIMENSIONS
  85 x 430 x 305mm (3.4 x 16.9 x 12.2”)

  WEIGHT
  3.5Kg (7.7lbs)

  BOX CONTENT
  CXN (v2) Network Streamer, Power Cable, 3 x AAA Batteries, Remote Control, Control Bus Cable, Wi-Fi Dongle

  ROON READY
  Yes (Requires a Roon subscription)
