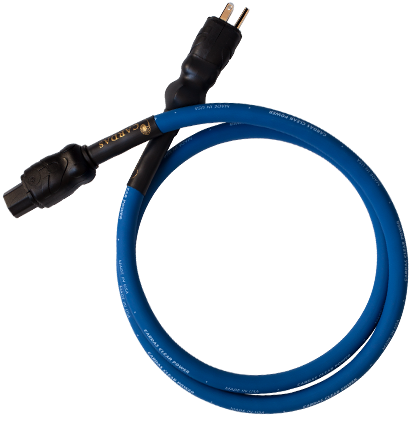

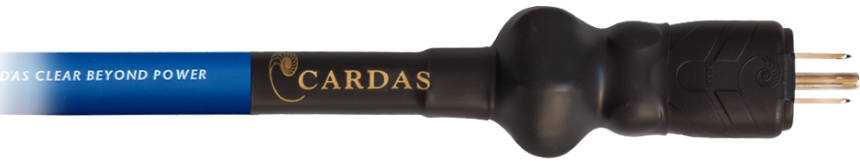

Beyond Power

Clear Beyond Power is our highest capacity power cable, intended for large, high current tube & solid state power amplifiers.

Termination Options:
Clear Beyond comes starndard with Cardas Power connectors, featuring copper blades & clips, plated with rhodium over silver. All standard international wall plugs are also available, as are 20 amp IEC connectors

售價:41,500

上一頁

 ▲TOP

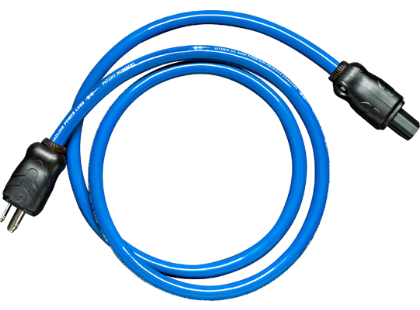

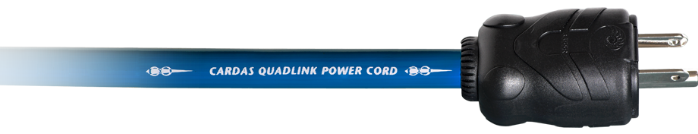

Quadlink Power

Quadlink is a medium size power cord which is suitable for small amplifiers or large power supply preamps, etc.

Termination Options:
Quadlink Power comes starndard with all new Cardas 3455R wall plugs & 15 amp IEC connectors, featuring copper blades plated with rhodium over silver. All standard international wall plugs are also available, as are 20 amp IEC connectors.

售價:10,500

上一頁

 ▲TOP

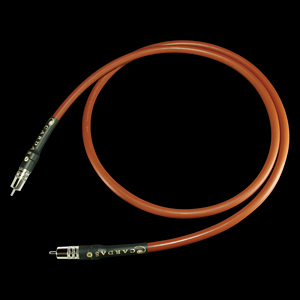

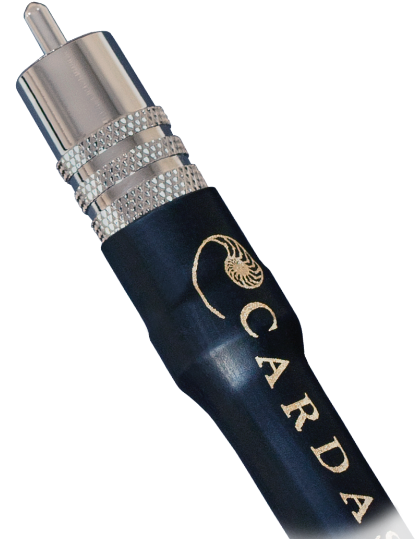

Cross Interconnect

For a quarter-century, Cardas has been known for its signature sound - warm and musical, with rich mid-range, and vivid imaging. Cross Interconnect reflects the original Cardas designs.

Technical Specifications:

Construction
Cardas copper, PFA-air dielectric, 4 x 20.5 AWG Cardas Conductors, Golden section, Crossfield, litz, double shielding, symmetrical quad-axial cable construction, Alcryn jacket (previously had urethane jacket).

Measurements:
RCA Capacitance: 26.4 pf/ft
XLR Capacitance: 16 pf/ft

Termination Options:
Cross Interconnect is terminated with Cardas GRMO RCA connectors, or Neutrik XLR plugs.



售價:26,200 / 1m   33,000 / 1.5m

上一頁

 ▲TOP




Quadlink Speaker

Ideal for small relatively efficient home audio speakers.

Technical Specifications:

Construction
.495" O.D., Cardas copper, PFA & air dielectric, 4 x 15.5 AWG conductors, Golden section, quad axial construction, litz, urethane jacket.

Measurements:
Capacitance: 19 pf/ft
Inductance: .16 uh/ft

Termination Options:
1/4" (6mm), pure copper, rhodium/silver plated spades are standard. 9mm spades, bananas, and Maggy pins also available.

售價:31,000 / 3m
