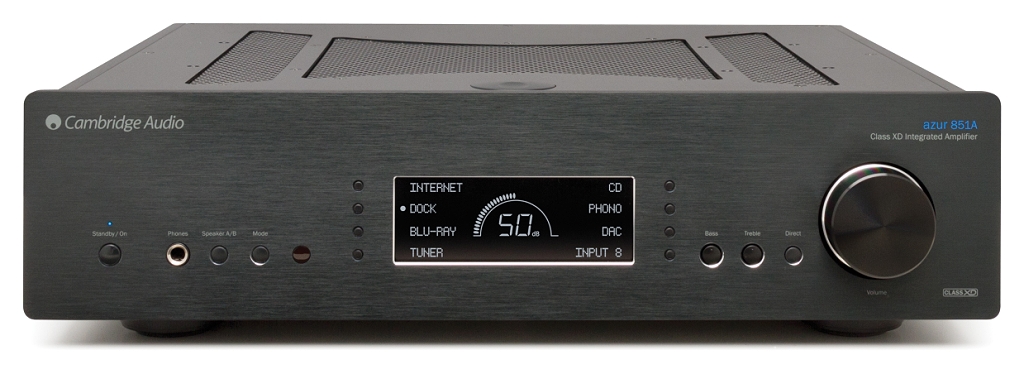

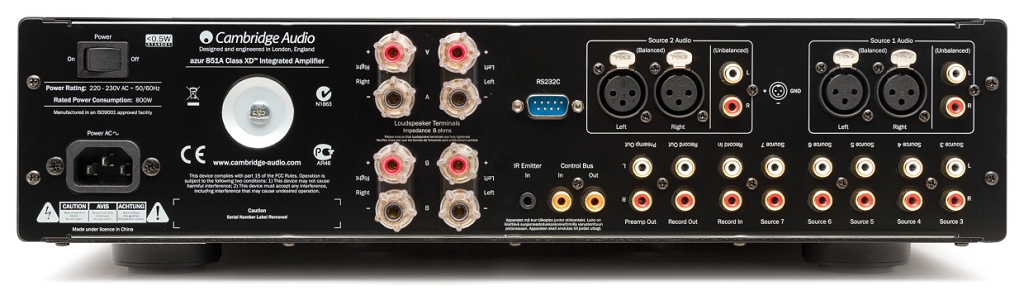

Azur 851A Integrated Class XD Amplifier

Power output 120W RMS into 8 Ohms
200W RMS into 4 Ohms
200W RMS into 4 Ohms
THD (unweighted) < 0.001% 1 kHz at 80% of rated power
< 0.01% 20 Hz - 20 kHz at 80% of rated power
Audio inputs 2 x balanced XLR
8 x RCA inputs
Audio outputs Preamp output
Record output
Frequency Response 10 Hz - 50 kHz +/- 1 dB
S/N ratio (ref 1w): > 93 dB (ref 1W/8 Ohm)
Input Impedance: Inputs 1 and 2 (balanced) 20 kOhm
Inputs 1-7 unbalanced 20 kOhm
Rec Input 20 kOhm
Power amp damping factor: > 110 at 1 kHz
Max. Power Consumption 800W
Min. power consumption Active (no signal) 70W
Standby power consumption Standby <0.5W
Shelving type
Max bass boost/cut +/- 10 dB at 10 Hz
Max treble boost/cut +/- 7.5 dB at 20 kHz
Dimensions (W x H x D) 430 x 115 x 385mm
Weight 15.0Kg



CXA80 Integrated Amplifier
80 Watts per channel
Toroidal Transformer
Digital Inputs
AptX Bluetooth (Optional)
Analogue Inputs
Cap5 Protection
Headphone Output
Asynchronous USB Audio
Balanced XLR Input
Black or Silver Finish

Power output: 80W RMS into 8 Ohms, 120W RMS into 4 Ohms
DAC: Wolfson WM8740
Frequency Response: <5Hz– 60kHz +/-1dB
Analogue audio inputs: 1x balanced XLR, 4 x RCA, 1 x 3.5mm MP3 input (front panel)
Digital audio inputs: 1 x S/PDIF coaxial, 2 x TOSLINK optical, 1 x USB audio, Bluetooth via BT100 (not supplied)
Compatibility: TOSLINK optical, S/PDIF coaxial, USB 1.0 and 2.0, BT100 Bluetooth receiver
Outputs: Speakers A+B, 3.5mm headphone, Preamp Output, Subwoofer Output
Max power consumption: 750W
Standby power consumption: <0.5W
Dimensions (H x W x D)*: 115 x 430 x 341mm
Weight: 8.7kg

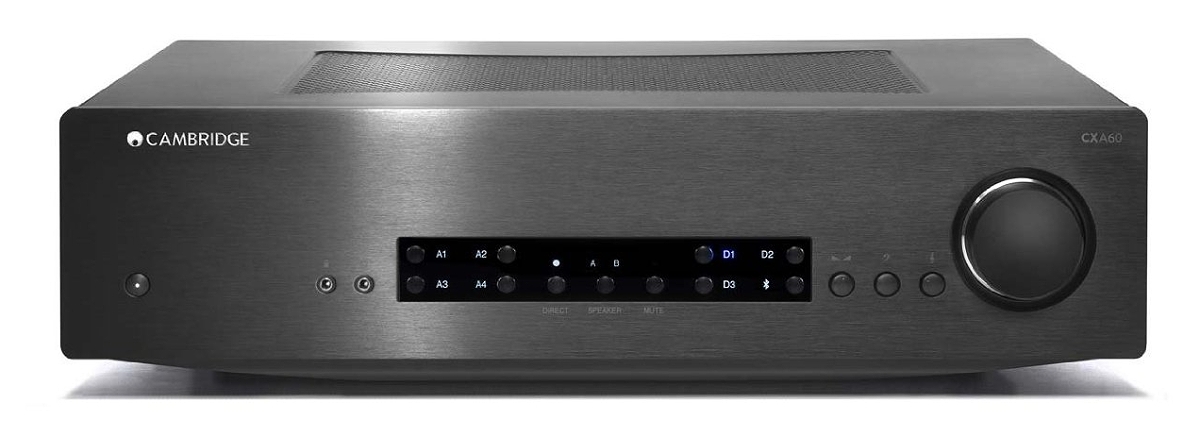

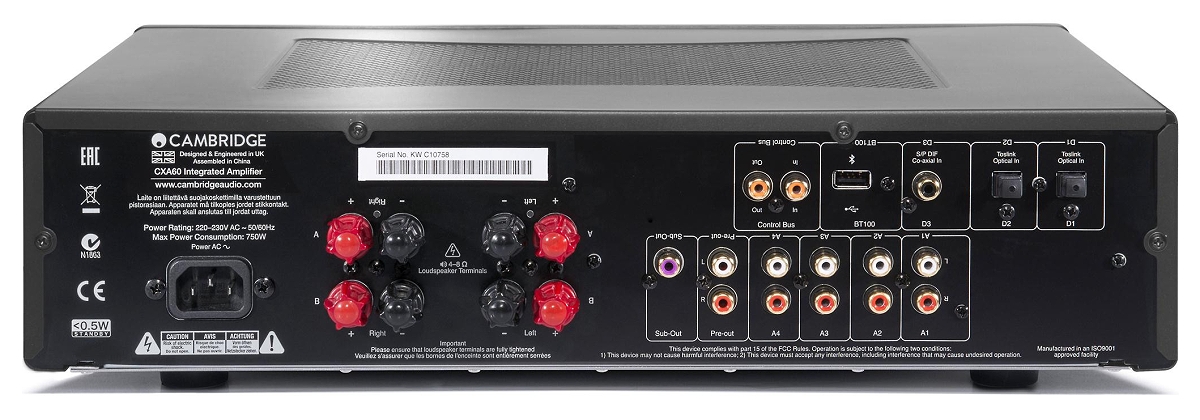

60W integrated amplifier

Power output60W RMS into 8 Ohms, 90W RMS into 4 Ohms
DACWolfson WM8740
Frequency Response<5Hz– 60kHz +/-1dB
Analogue audio inputs4 x RCA, 1 x 3.5mm MP3 input (front panel)
Digital audio inputs1 x S/PDIF coaxial, 2 x TOSLINK optical, Bluetooth via BT100 (not supplied)
CompatibilityTOSLINK optical, S/PDIF coaxial, BT100 Bluetooth receiver
OutputsSpeakers A+B, 3.5mm Headphone, Preamp Output, Subwoofer Output
Max power consumption600W
Standby power consumption<0.5W
Dimensions (H x W x D)115 x 430 x 341mm Weight8.3kg




Minx Xi Digital Music System


Digital to Analogue Converter

Dual Wolfson WM8728

Power output

40 watts RMS (into 8 ohms)
47 watts RMS (into 6 ohms)
55 watts RMS (into 4 ohms)


Network music playback (Wi-fi & Ethernet), 16-24-bit 32-96kHz
2 x local USB media inputs, 16-24-bit 32-96kHz
Toslink input, 16-24-bit 32-96kHz
S/PDIF input, 16-24-bit 32-96kHz
BT100 Bluetooth receiver: A2DP plus aptX
2 x RCA analogue inputs
3.5mm analogue input
Headphone output
Speaker outputs, 2 x 40W RMS
Subwoofer output

Audio Formats Supported


Standby power consumption


Max. power consumption


Mains Inlet Voltage

100-120V AC or 220-240V AC

Dimensions (H x W x D)

90 x 270 x 285mm (3.5 x 10.6 x 11.2”)


5.8kg (12.8lbs)




Topaz SR10 powerful FM/AM stereo receiver
Power Output: 85 watts (into 8 Ohms)
Frequency Response: (-1dB) 5Hz - 50kHz
Max. Power Consumption: 500W
Radio function Aerial inputs FM 75 ohms, Coaxial.
AM 300 ohms wire loop/single wire.
Europe: AM (522-1629kHz)
FM (87.5-108MHz)
US AM (530-1710kHz)
FM (87.5-108MHz)
Dimensions (H x W x D): 110 x 430 x 340mm
Weight 8.1kg



Power Output: 35 watts (into 8 Ohms)
Frequency Response: (-3dB) 5Hz - 50kHz
S/N: (ref 1W) >82dB (unweighted)
THD (unweighted): <0.01% @ 1kHz, 80% of rated power
<0.15% 20Hz - 20kHx, 80% of rated power
Max. Power Consumption: 260W
Input Impedance: 47k ohms
Power amp damping factor: >50
Bass/Treble controls: Shelving, ultimate boost/cut
+/- 10dB @ 100Hz and 10kHz
Dimensions (H x W x D): 76 x 430 x 340mm
Weight 5.6kg (12.3lbs)
