▲點圖放大
|

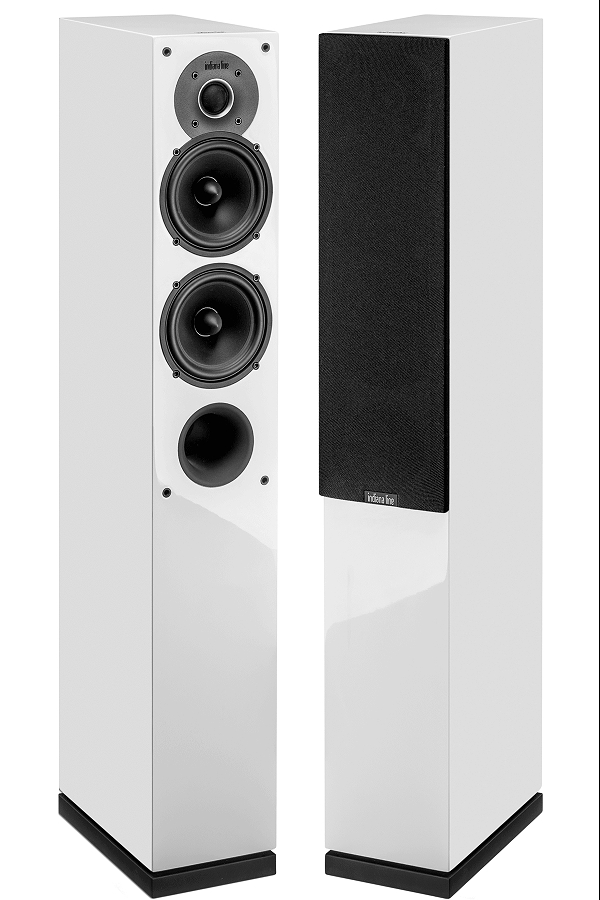

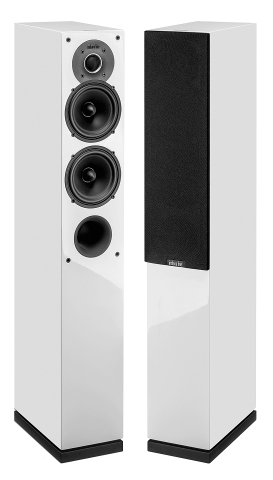

| Technical specifications |
|
3-way, bass-reflex
30 ÷ 120 watt suggested amplifier
4 ÷ 8 ohm amplifier loading impedance
38 ÷ 22000 hertz response
91 dB (2.83 V / 1 m) sensitivity
120 mm woofer
120 mm mid-woofer
26 mm dome tweeter
180/2700 hertz crossover
135 x 825 x 240 mm – 9.4 kg
• bi-wiring / bi-amping terminals |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
▲點圖放大
|

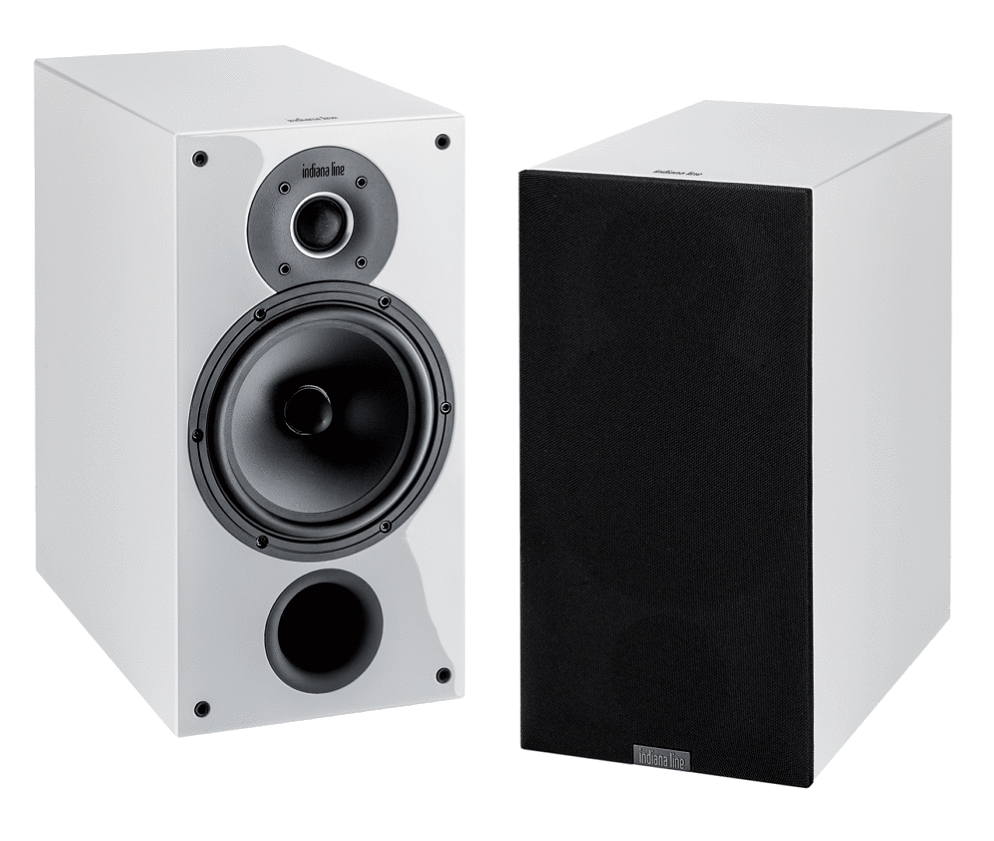

| Technical specifications |
|
2-way, bass-reflex
30 ÷ 120 watt suggested amplifier
4 ÷ 8 ohm amplifier loading impedance
45 ÷ 22000 hertz response
91 dB (2.83 V / 1 m) sensitivity
160 mm mid-woofer
26 mm dome tweeter
2500 hertz crossover
175 x 340 x 300 mm – 5.9 kg
• foam plug supplied |
|
|
|
|
|
|
|
|
|
|
|
|
▲點圖放大
|

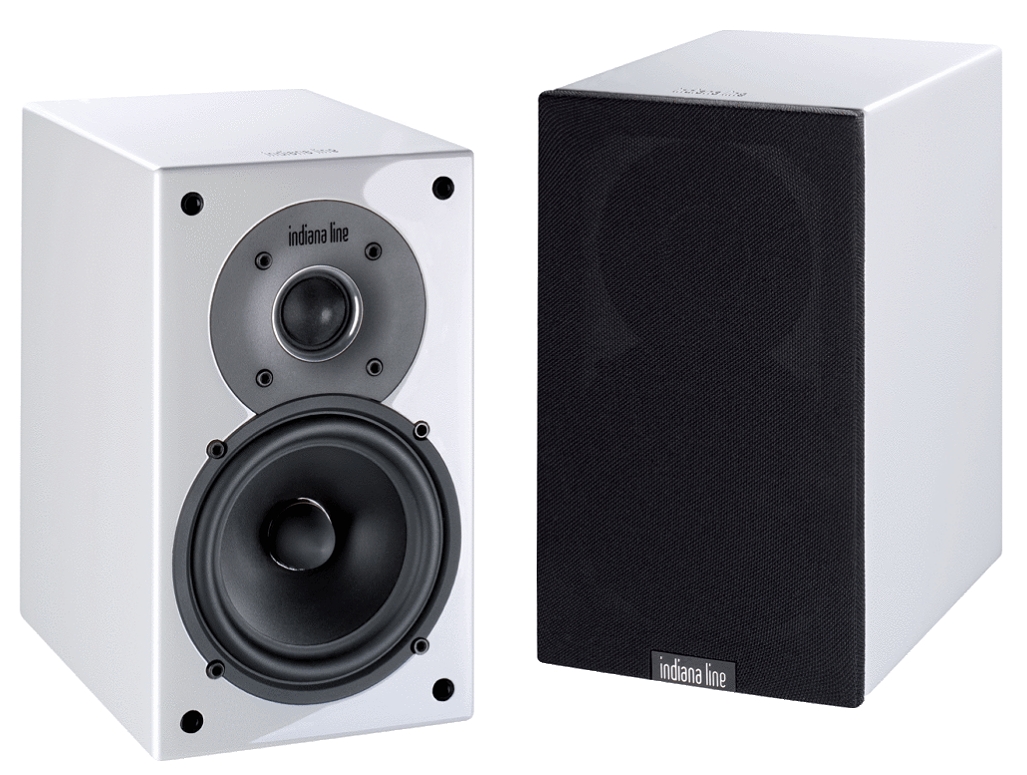

| Technical specifications |
|
2-way, bass-reflex
30 ÷ 80 watt suggested amplifier
4 ÷ 8 ohm amplifier loading impedance
58 ÷ 22000 hertz response
90 dB (2.83 V / 1 m) sensitivity
120 mm mid-woofer
26 mm dome tweeter
2700 hertz crossover
135 x 230 x 195 mm – 2.5 kg
• foam plug supplied
• hangable on wall |
|
|
|
|
|
|
|
|
| |
|
|
|
|
|
▲點圖放大
|

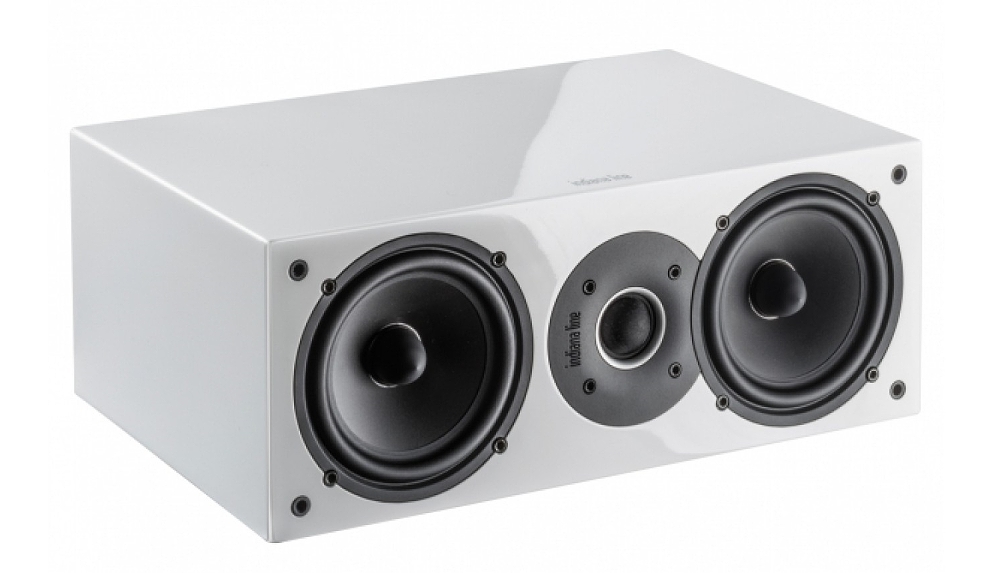

| Technical specifications |
|
2-way, bass-reflex
30 ÷ 100 watt suggested amplifier
4 ÷ 8 ohm amplifier loading impedance
55 ÷ 22000 hertz response
92 dB (2.83 V / 1 m) sensitivity
2 x 120 mm mid-woofer
26 mm dome tweeter
2600 hertz crossover
350 x 135 x 240 mm – 5.0 kg
• foam plug supplied |
|
|
|
|
|
|
| |
