▲點圖放大
|
|
|
| Technical specifications |
|
| Operating
principle: |
2-way,
vented |
| Tweeter: |
1"
titanium |
| Mid
/ woofer: |
4,5"
paper |
| Crossover
point: |
1600
Hz |
| Impedance: |
8
Ω |
| Sensitivity: |
86
dB |
| Frequency
response: |
60
- 20 000 Hz +/-3dB |
| Power
recommendation: |
20
- 80 W |
| Measurements
(h x w x d): |
259
x 132 x 220 mm |
| Weight: |
3,5
kg |
|
Variations:
(see
overview here)
|
Monochrome:
full white, standard white, white with black
grids, black

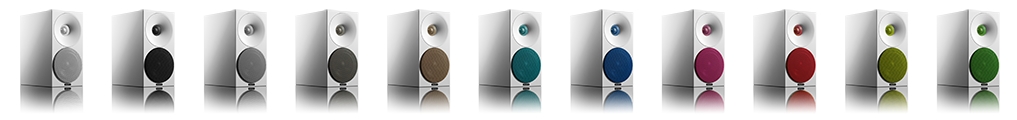

White
with color grids: 9 different colors, RAL color of
choice*
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
▲點圖放大
|
| Technical specifications |
|
| Operating
principle: |
2-way,
vented |
| Tweeter: |
1"
titanium |
| Mid
/ woofer: |
5,25"
paper |
| Crossover
point: |
1600
Hz |
| Impedance: |
8
Ω |
| Sensitivity: |
86
dB |
| Frequency
response: |
47
- 30 000 Hz |
| Power
recommendation: |
20
- 100 W |
| Measurements
(h x w x d): |
316
x 160 x 265 mm |
| Weight: |
7
kg |
|
Variations:
(see
overview here)
|
Monochrome:
full white, standard white, white with black
grids, black
Veneer:
walnut
White
with color grids: 9 different colors, RAL color of
choice*
|
|
|
|
|
|
|
|
|
|
|
|
|
▲點圖放大
|
| Technical specifications |
|
| Operating
principle: |
2-way,
vented |
| Tweeter: |
1"
titanium |
| Mid
/ woofer: |
2
x 5,25" paper |
| Crossover
point: |
1600
Hz |
| Impedance: |
4
Ω |
| Sensitivity: |
90
dB |
| Frequency
response: |
40
- 30 000 Hz |
| Power
recommendation: |
10
- 150 W |
| Measurements
(h x w x d): |
1040
x 160 x 215 mm |
| Weight: |
16
kg |
|
Variations:
(see
overview here)
|
Monochrome:
full white, standard white, white with black
grids, black
Veneer:
walnut
White
with color grids: 9 different colors, RAL color of
choice*
|
|
|
|
|
|
|
|
| |
|
|
|
|
|
▲點圖放大
|
| Technical specifications |
| Operating
principle: |
2-way,
vented |
| Tweeter: |
1"
titanium |
| Mid
/ woofer: |
2
x 5,25" paper |
| Crossover
point: |
1600
Hz |
| Impedance: |
4 |
| Sensitivity: |
90
dB |
| Frequency
response: |
45
- 30 000 Hz +/-3dB |
| Power
recommendation: |
10
- 150 W |
| Measurements
(h x w x d): |
160
x 510 x 265 mm |
| Weight: |
10
kg |
|
Variations:
(see overview here)
|
Monochrome: full white,
standard white, white with black grids, black
Veneer: walnut
White with color grids: 9
different colors, RAL color of choice*
|
|
|
|
|
|
| |
|
